Separation of Powers

After separation of powers is enabled, system administration, user authorization, and security auditing are assigned to different administrators. No single administrator can perform all administrative operations.

The feature described on this page is available starting from V2.0.11.1.

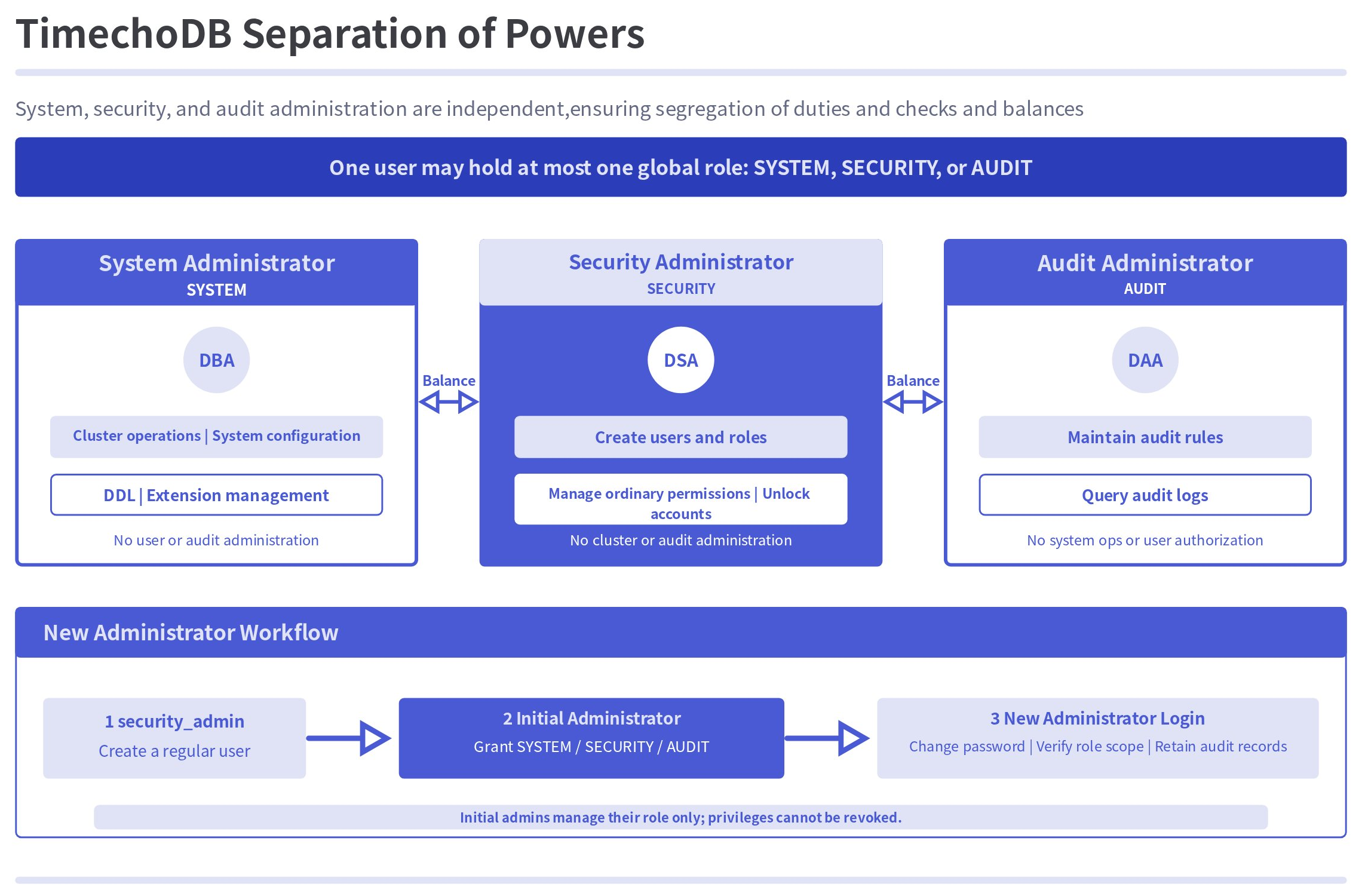

The global privileges and responsibilities of each administrator type are as follows:

Administrator	Global privilege	Primary responsibilities
System administrator (DBA)	SYSTEM	Cluster operations, system configuration, DDL, and other system administration operations.
Security administrator (DSA)	SECURITY	Manages users and roles and grants privileges to ordinary users or roles.
Audit administrator (DAA)	AUDIT	Maintains audit rules and views audit logs.

For basic concepts and SQL syntax related to ordinary users, roles, and data privileges, see Authority Management (From V2.0.7).

1. Usage

1.1 Configuration

Set the following parameter in iotdb-system.properties:

Parameter	Default	Effective mode	Description
enable_separation_of_powers	false	Hot reload	Specifies whether to enable separation of powers. The initial value is false, and the value can only be changed from false to true. It cannot be changed back to false after the feature is enabled.

enable_separation_of_powers=true

Warning: Separation of powers cannot be disabled after it is enabled, and the original root user will immediately be unable to log in.

1.2 Initial Administrators

When separation of powers is enabled for the first time, the system automatically creates three built-in initial administrators:

Username	Administrator type	Default global privilege
sys_admin	Initial system administrator	SYSTEM
security_admin	Initial security administrator	SECURITY
audit_admin	Initial audit administrator	AUDIT

The default password for all three initial administrators is TimechoDB@2021. Change each password immediately after the first login.

The username and password of an initial administrator can only be changed by that account. The corresponding global privilege of an initial administrator cannot be revoked.

2. Administration Model

2.1 Core Principles

• A user can hold only one of the SYSTEM, SECURITY, and AUDIT administrative privileges, but can still receive ordinary data privileges as required.
• The system can have multiple system, security, and audit administrators.
• Only the initial system administrator can grant or revoke the SYSTEM privilege.
• Only the initial security administrator can grant or revoke the SECURITY privilege.
• Only the initial audit administrator can grant or revoke the AUDIT privilege.
• A security administrator must first create a new administrator as an ordinary user. The corresponding initial administrator then grants the required global privilege.

2.2 Ordinary Users and Roles

• Ordinary users do not have the SYSTEM, SECURITY, or AUDIT global privilege. Only security administrators can create ordinary users or grant and revoke their ordinary privileges.
• Roles can contain only ordinary privileges. Security administrators are responsible for creating and deleting roles, assigning roles to users, and granting or revoking role privileges.

2.3 Creating an Administrator

1. Use security_admin to create a user.
2. Log in as sys_admin, security_admin, or audit_admin, depending on the required administrator type.
3. Grant SYSTEM, SECURITY, or AUDIT to the new user.
4. Log in with the new administrator account, change the password set when the user was created, and verify that the account can perform only the corresponding administrative operations.
5. Check the audit logs for the user creation and privilege grant records.

3. Authorization by Operation

3.1 Common Features

User Management

Operation	System administrator	Security administrator	Audit administrator
Create a user	Not supported	Supported	Not supported
Delete a user	Not supported	Can delete ordinary users; only the initial security administrator can delete other security administrators	Not supported
Change a user password	Can change only their own password	Can change ordinary user passwords; the initial security administrator can change only their own password, while other security administrators' passwords can be changed by the initial security administrator	Can change only their own password
Unlock a user	Not supported	Supported	Not supported
Rename a user	Can rename only their own account	Can rename ordinary users; the initial security administrator can rename only their own account, while other security administrators can be renamed by the initial security administrator	Can rename only their own account
Set a user's connection limit	Not supported	Can change the limit for users other than initial administrators; the initial security administrator can change only their own limit	Not supported
Query users	An ordinary system administrator can see only themselves; the initial system administrator can see all system administrators	Can see all users	An ordinary audit administrator can see only themselves; the initial audit administrator can see all audit administrators
Grant or revoke a user's global privilege	Only the initial system administrator can manage SYSTEM	Only the initial security administrator can manage SECURITY	Only the initial audit administrator can manage AUDIT
Grant or revoke an ordinary user's privileges	Not supported	Supported	Not supported
Query user privileges	An ordinary system administrator can view only their own privileges; the initial system administrator can view all system administrators	Can view all users	An ordinary audit administrator can view only their own privileges; the initial audit administrator can view all audit administrators

Role Management

Operation	System administrator	Security administrator	Audit administrator
Create or delete a role	Not supported	Supported	Not supported
Query roles	An ordinary system administrator can view only their own roles; the initial system administrator can view the roles of all system administrators	Supported	An ordinary audit administrator can view only their own roles; the initial audit administrator can view the roles of all audit administrators
Grant or revoke role privileges	Not supported	Supported for ordinary privileges only	Not supported
Grant or revoke a user's role	Not supported	Supported	Not supported
Query role privileges	An ordinary system administrator can view only privileges of their own roles; the initial system administrator can view the roles of all system administrators	Can view all roles	An ordinary audit administrator can view only privileges of their own roles; the initial audit administrator can view the roles of all audit administrators

Security Audit

Feature or operation	System administrator	Security administrator	Audit administrator
Maintain and query audit log rules	Not supported	Not supported	Supported

Cluster Operations

Feature or operation	System administrator	Security administrator	Audit administrator
View ConfigNode, DataNode, cluster, and Region information, or migrate Regions	Supported	Not supported	Not supported
Query common information such as the version, timestamp, and current user	Supported	See the corresponding SQL statement for the supported scope	See the corresponding SQL statement for the supported scope
Flush data, clear caches, set the system status, repair data, and perform other cluster operations	Supported	Not supported	Not supported
View and terminate queries	Supported	Can operate only on their own queries	Can operate only on their own queries
SET CONFIGURATION	Supports ordinary system configuration	Supports security configuration marked SECURITY	Supports audit configuration marked AUDIT
LOAD CONFIGURATION	Prohibited globally	Prohibited globally	Prohibited globally

UDF Management

Feature or operation	System administrator	Security administrator	Audit administrator
Create or delete a UDF	Supported	Not supported	Not supported
Show or use a UDF	Supported	Supported	Supported

Stream Processing

Feature or operation	System administrator	Security administrator	Audit administrator
Create, delete, modify, start, or stop a Pipe	Supported	Not supported	Not supported
Show Pipes	Supported	Can view only Pipes related to the current user	Can view only Pipes related to the current user
Create, delete, or show Pipe plugins	Supported	Not supported	Not supported
Create, show, or delete topics, and delete or view subscriptions	Supported	Not supported	Not supported
Consume a subscription topic	Access is determined by the current user's data privileges	Access is determined by the current user's data privileges	Access is determined by the current user's data privileges

Database Management

Feature or operation	System administrator	Security administrator	Audit administrator
Create, alter, or drop a database	Can operate on ordinary databases, but not the audit database	Requires the corresponding CREATE, ALTER, or DROP privilege on the target database	Requires the corresponding CREATE, ALTER, or DROP privilege on the target database
Show databases	Can view ordinary databases	Can view only ordinary databases they are authorized to access	Can view the audit database and ordinary databases they are authorized to access

AINode Model Management

Feature or operation	System administrator	Security administrator	Audit administrator
Create, train, delete, load, or unload a model, or view GPU resources	Supported	Not supported	Not supported
Read data during model training	Requires query privileges on the training data	Requires query privileges on the training data	Requires query privileges on the training data
Query or use a model for inference	Supported	Supported	Supported

3.2 Tree Model-Specific Operations

Administrators still require the corresponding data privileges on the target paths when accessing data through the tree model.

Feature	Operation	Privilege requirement
Data lifecycle management	Set or unset TTL	All three administrator types require WRITE_SCHEMA on the target path
Data lifecycle management	Show TTL	All three administrator types require READ_SCHEMA on the target path
Metadata management	Create, alter, delete, or show timeseries views	All three administrator types require WRITE_SCHEMA or READ_SCHEMA on the corresponding path
Metadata management	Create, delete, alter, or show devices and timeseries	All three administrator types require WRITE_SCHEMA or READ_SCHEMA on the corresponding path
Template management	Create, mount, unmount, delete, or alter a template	Supported for system administrators; not supported for security or audit administrators
Template management	Activate, deactivate, or query a template	All three administrator types require WRITE_SCHEMA or READ_SCHEMA on the corresponding path
Cluster management	Test connections, manage partition slots, set quotas, and related operations	Supported only for system administrators
Task management	Create, delete, or show a Trigger	Supported only for system administrators
Task management	Create, query, or delete a continuous query	Supported only for system administrators
Data operations	Write data by using LOAD, INSERT, or related operations	All three administrator types require WRITE_DATA
Data operations	Delete or update data	All three administrator types require WRITE_DATA
Data operations	Query data by using SELECT, EXPLAIN, or related operations	All three administrator types require READ_DATA
Data operations	Write query results back	All three administrator types require READ_DATA and WRITE_DATA
Pipe runtime	Read data from a source path	The executing user requires READ_DATA on the source path

4. Examples

4.1 Create Administrator Candidates

Log in to the table-model CLI as security_admin and create three administrator candidates:

CREATE USER system1 '<StrongPassword>';
CREATE USER security1 '<StrongPassword>';
CREATE USER audit1 '<StrongPassword>';

4.2 Grant the System Administration Privilege

Log in to a table-model connection as sys_admin:

GRANT SYSTEM TO USER system1;

4.3 Grant the Security Administration Privilege

Log in to a table-model connection as security_admin:

GRANT SECURITY TO USER security1;

4.4 Grant the Audit Administration Privilege

Log in to a table-model connection as audit_admin:

GRANT AUDIT TO USER audit1;
